The Biltmore Estate: A Brief Architectural Tour

Biltmore Estate Tour

The Biltmore Estate, Ashville, NC. Photo: Jane Dagmi

I recently toured The Biltmore in Asheville, NC—a 250-room estate on 8,000 acres, the largest private home built in America. It is architecturally splendid, wildly romantic, and absurdly luxurious.

Inspired by chateaux in France, George Vanderbilt hired architect Richard Morris Hunt to interpret his vision and Frederick Law Olmsted to landscape it.

Over six years, 1,000 men worked six days a week to complete the estate, with George Vanderbilt and his guests christening Biltmore on Christmas Eve 1895.

Related: 10 National Trust Properties You Can Visit

This was my first visit to the estate, and from the moment I glimpsed it, my heartbeat seriously raced. I was in awe of the scale, the scenery, and the lifestyle that it must have supported.

Here are six of the Biltmore’s most memorable architectural features:

Biltmore Estate Architectural Tour

The Grand Staircase at Biltmore Estate. Photo: Biltmore Estate

The Cantilevered Staircase.
Inspired by the staircase at the Chateau de Blois in the Loire Valley, Biltmore’s grand staircase is a marvel of physics built using counterbalance. The weight of each of the solid limestone slab steps is offset by the weight of the wall bearing down.

Biltmore Estate

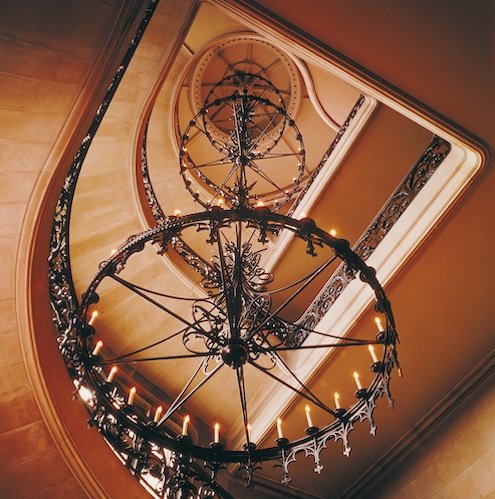

The chandelier in the Grand Staircase at Biltmore Estate. Photo: Biltmore Estate

The Massive Chandelier
There is a 1,700-pound electric light fixture suspended from the middle of the grand staircase. It hangs from a single bolt that runs through steel girders under the dome roof. The bolt has been replaced only once since the house was built. Wisely designed, the copper dome opens for easier access to the fixture.

Biltmore Tour

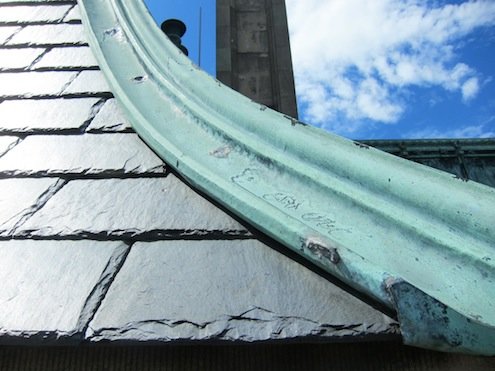

The Biltmore's slate roof tiles and copper flashing. Photo: Jane Dagmi

Roof Tiles and Copper Flashing
The slate roof tiles were affixed one by one. Each piece was drilled at the corners and subsequently wired onto the attic’s steel infrastructure. Copper flashing was then installed at the junctions to prevent water from penetrating. The fanciful flashing on the ridge of the roof was embossed with George Vanderbilt’s initials and other natural motifs from his family crest. The original gold leaf no longer survives.

Architecture Biltmore Estate

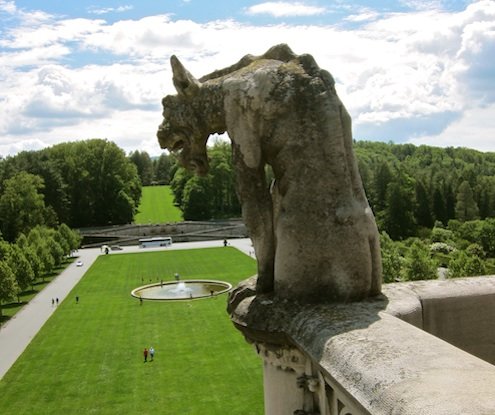

A gargoyle perched atop The Biltmore Estate. Photo: Jane Dagmi

Grotesques vs. Gargoyles
Originally found in 16th century Italian grottoes, grotesques are stone-carved fantasy figures that often appear intertwined with floral ornament, either on the capitals of pillars or at the base of a truss. At Biltmore, they appear in abundance.

Gargoyles are bigger and project outwards from a wall. Though the Biltmore’s gargoyles are purely decorative, the usual purpose is to direct water away from a building. Thought to ward off evil spirits, they are strategically placed at lookout points around the exterior

Biltmore Tour

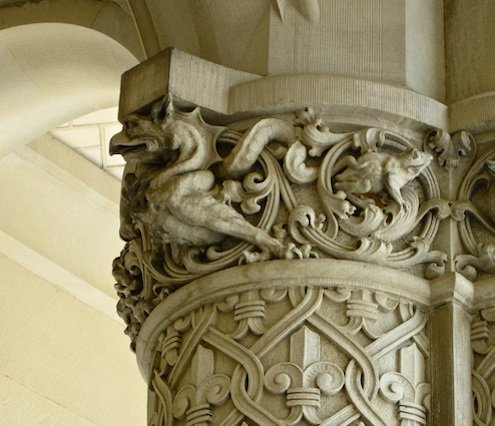

Biltmore Estate's ornate limestone columns. Photo: Biltmore Estate

Patterned and Textured Limestone
Immense quantities of limestone were hauled in from The Hallowell Stone Company in Indiana, stored in sheds, and then cut into blocks. While some was left smooth, other surfaces were textured and carved. Vanderbilt wanted the sunlight to reflect off of his house in aesthetically pleasing and varied ways. Beyond striations, symbols from the family crests are also carved into the columns providing contrast, definition, and design value.

Biltmore Gustavino Tile Ceiling

Guastavino vaulted tile ceiling at Biltmore Estate. Photo courtesy: Biltmore Estate

Guastavino Tile
Spanish architect and engineer Rafael Guastavino patented a self-supporting ceramic tile vault and arch system in the late 19th century. The system—used extensively inside and outside at Biltmore—consists of layers of terracotta tiles set in a herringbone pattern into Portland cement. The tile master Gustavino personally supervised the work.

Biltmore Roof

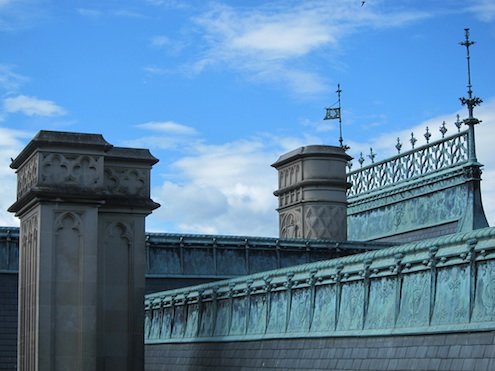

Rooftop view of Biltmore Estate. Photo: Jane Dagmi

If I could go back in time to spend just a few late-summer weeks in the North Carolina mountains, partying in the banquet room and pouring through some of the 10,000 books in Vanderbilt’s library; or creating flower arrangements from the gardens; or maybe even painting landscapes from a perch in the observatory, I most certainly would. But if visiting the past isn’t possible, I can always make a return trip to Biltmore in the near future.
