What Makes the Ultimate Wall?

Homebuilding has only grown more sophisticated in recent years, with a far greater emphasis placed on energy efficiency. Though many elements of wall assembly have gone more or less unchanged, there are a host of new methods and technologies to know, especially if you have plans to build a new home or addition. Click through to see what goes into a state-of-the-art exterior wall.

Expanded View >

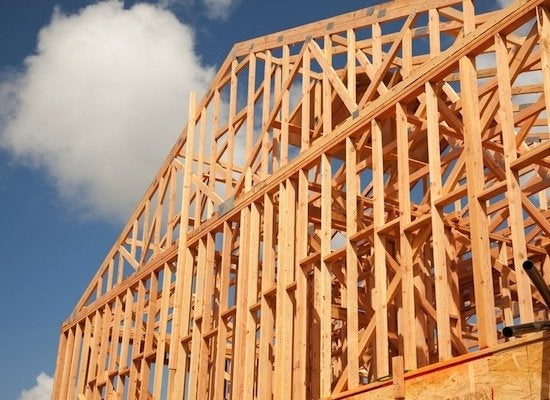

  1. State of the Art

    4be02b95810b23236b79a1e9399f3e70

    Today, new homes are, to an unprecedented degree, air- and water-tight. Much credit is due to the 21st-century building scientists who've developed the sophisticated technologies enabling exterior walls to better control the elements—rain, air, water vapor and heat—which in previous decades challenged home health and energy efficiency. Here's a look at the absolute state of the art.

    shutterstock.com

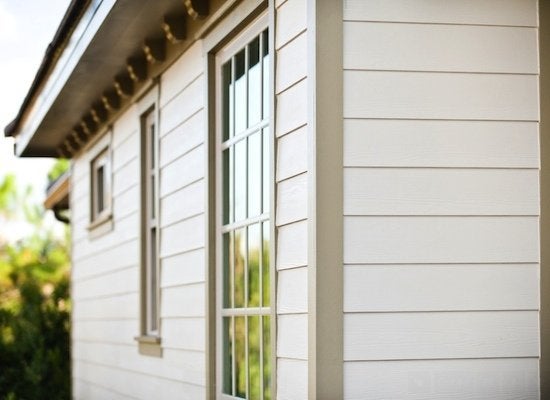

  2. Cladding

    6bd0101faa826859f0bb71cb773de842

    Siding is the outmost layer of a wall and your home's first line of defense. While there's no "one size fits all" solution, the best house siding effectively resists wind and water. Among the products made from renewable or recyclable materials, a number of options exist—wood, aluminum, bricks and fiber cement among them. No matter your choice, if the siding is going live up to its purpose, it must be properly installed.

    jameshardie.com

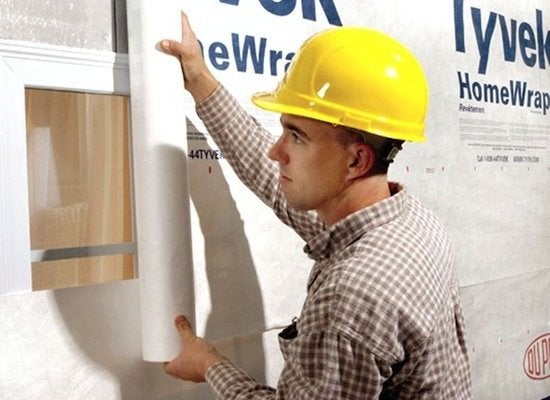

  3. Drainage Plane

    Eea10eb5c4d87221edec0e664eda8e73

    Even top-of-the-line, professionally installed siding can be, at times, vulnerable to water intrusion. That's why building scientists recommend putting a drainage plane directly behind the exterior cladding. In fact, the ultimate wall would include not one but several of these felt or plastic water-resistive barriers (WRBs).

    thehomedepot.com

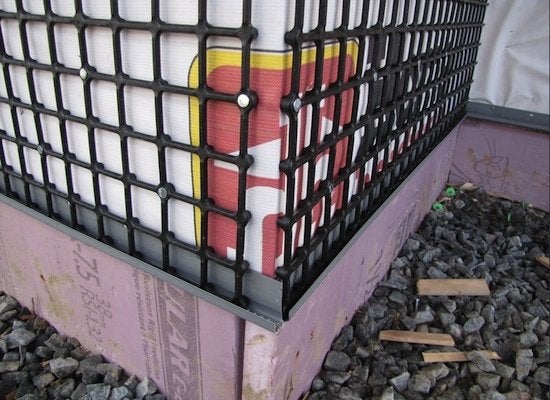

  4. Specialty Drainage Plane

    1f872209c9f048254a243d325d1c916b

    So-called "rainscreen" products act as both a ventilation layer and drainage plane. For homes in coastal areas subject to intense wind-driven rain, speciality drainage planes, such as those offered by Ventgrid, create a capillary break, which reduces the likelihood of moisture collecting behind the cladding.

    ventgrid.com

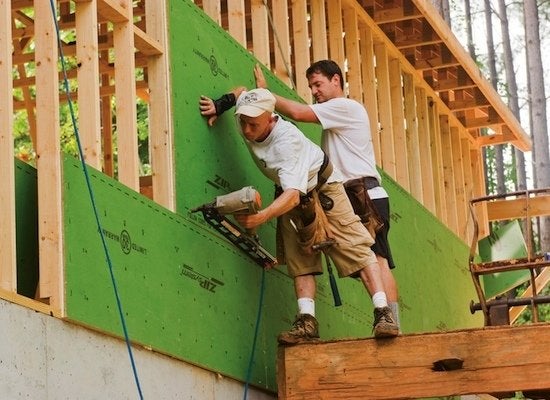

  5. Continuous Exterior Insulation

    4607c990d413efb560835f09d5f968ca

    A layer of continuous exterior insulation reduces air and heat flow, adds R-value to the wall assembly, and eliminates the thermal bridging phenomenon that occurs in walls insulated only between studs. Rigid insulation may be used here, but builders might also consider innovative products that combine drainage planes, structural sheathing, and exterior insulation in one panel.

    huberwood.com

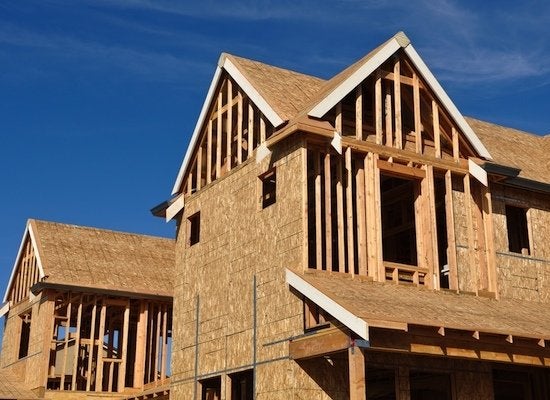

  6. Rigid Sheathing

    A0668175891963dc003285f382527c2e

    Rigid sheathing, attached to the wood framing, provides structural integrity. To protect the house from damage by wind-borne debris in a severe storm, experts recommend plywood or oriented strand board (OSB) sheathing with a thickness of at least a half inch.

    shutterstock.com

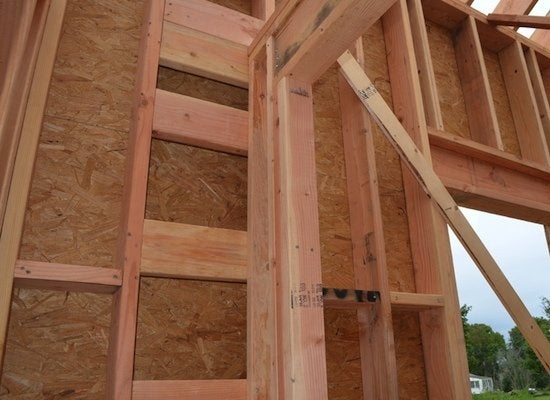

  7. Advanced Framing

    300c8cb1d102b25e89c5cd7c7ea3ae60

    Conventional two-by-four framing does not easily accommodate for insulation to be installed in keeping with increasingly stringent building codes. The ultimate wall assembly would include lumber with dimensions of at least two by six. Advanced framing techniques—for instance, spacing studs at intervals wider than 16 inches—go further toward allowing the wall to be insulated in an ideal manner.

    sunsetgreenhome.com

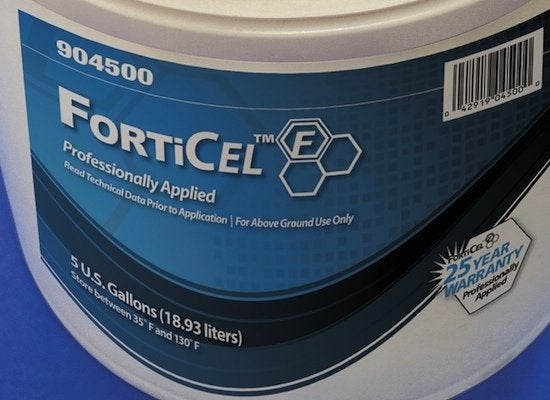

  8. Mold Inhibitor

    6b4524126578edd1272bb460080f89ef

    Inside your walls, take a preventative step against mold with a product such as Forticel. Manufactured by CertainTeed, FortiCel is professionally spray-applied to the interior wall cavity. Once coated with mildewcide, the structural framing surfaces in the ultimate wall would be highly unlikely to develop a mold problem down the line.

    certainteed.com

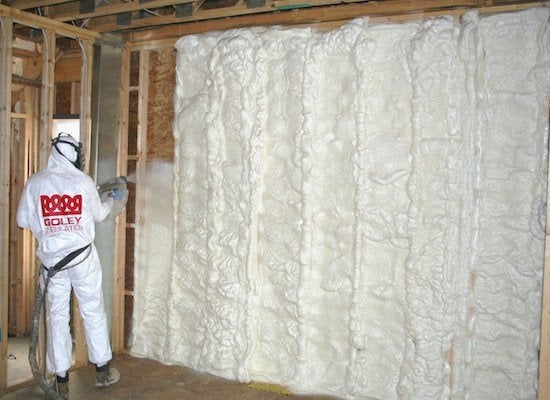

  9. Insulation

    976c26079c39a1f6a4867d01ce5dbb5f

    Insulation minimizes heat transfer through the wall assembly and contributes to a home's overall energy efficiency. No matter what type of insulation is chosen, products with a high R-value help the building meet its efficiency goals, whether those are set by the client or by an authority like LEED. Remember that in order for insulation to be effective, it must be installed without gaps, voids, or compression.

    angieslist.com

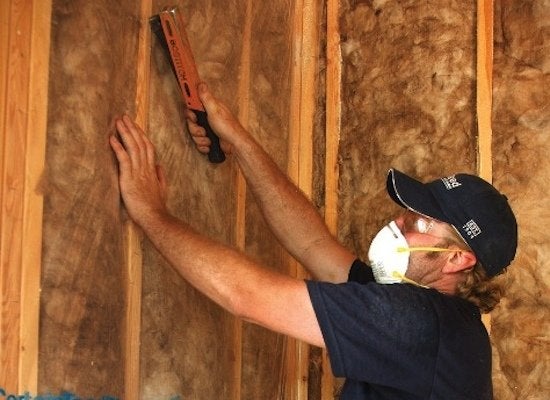

  10. Vapor Retarder

    08b271c0b6617b713f643cab8654a7e2

    While insulation reduces heat transfer through walls, it cannot halt the progress of mildew-causing moisture. For that reason, building science has given birth to vapor retarders. These allow a wall cavity to dry out under humid conditions, while deterring moisture from moving into the wall in the first place. A vapor retarder may be installed separately or as a built-in component of some insulation products (e.g., SMARTBATT by CertainTeed).

    certainteed.com

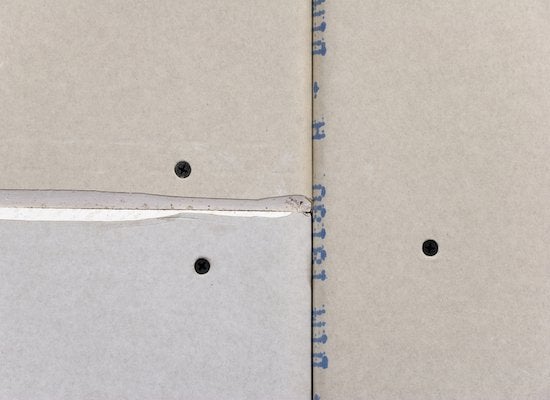

  11. High-Tech Gypsum Board

    F4fb7caaaffb3802b4fe7fbad366af13

    Gypsum board (also known as drywall) encloses your home’s framing and insulation, while acting as a fire-resistive barrier. The ultimate wall would certainly take advantage of the newest gypsum boards, particularly those designed to reduce noise transmission, fight mold and mildew, and withstand abuse in high-traffic areas. Some products even absorb the Volatile Organic Compounds (VOCs)—that is, cancer-causing agents sometimes found in home furnishings.

    shutterstock.com

  12. For More...

    Df2b5b5acb15f6ec888bd7f4eb0fc2c8

    For more on construction, consider:


    Bob Vila's Guide to Exterior Siding


    Quick Tip: Structural Insulated Panels


    Should You Custom Build Your Home?


    Kim Erle, LEED AP Homes, is a sustainability professional and founder of Sunset Green Home , a website that provides information about living a sustainable life and building a sustainable home.
