How To: Replace a Crusty Old Tub Spout

Replacing a tub spout is a straightforward project whose necessity arrives sooner or later in the life of most bathrooms.

How to Replace a Tub Spout

Photo: shutterstock.com

A tub spout does two things: It provides a decorative cover for the pipe stub delivering water to the bathtub, and it directs the water away from the wall where it could cause damage.

Our spout was more or less failing at both functions. It was severely pitted and judging from the amount of caulk around its base, the spout had a long history of leaking.

Related: Soak Up the Luxury with a Free-Standing Tub

For ease of installation and a gap-free fit at the wall, we chose a slip-connection replacement spout. Several types and styles of spouts are available; be sure to select one that complements the design of your shower system.

For example, if you control the shower with a diverter knob, buy a spout with a diverter. If, on the other hand, the diverter is not part of your shower control, buy a spout without a diverter.

Bear in mind that if your replacement spout is one that threads into place, picking up some plumber’s tape is a good idea, since wrapping the old threads will ensure a watertight joint.

MATERIALS:
- Large screwdriver or wood hammer
- Razor scraper with new blade
- Mini tubing cutter
- Steel wool
- Plumbing grease
- Slip-connection tub spout (with or without diverter)

DIRECTIONS

How to Replace a Tub Spout - Step 1

Photo: JProvey

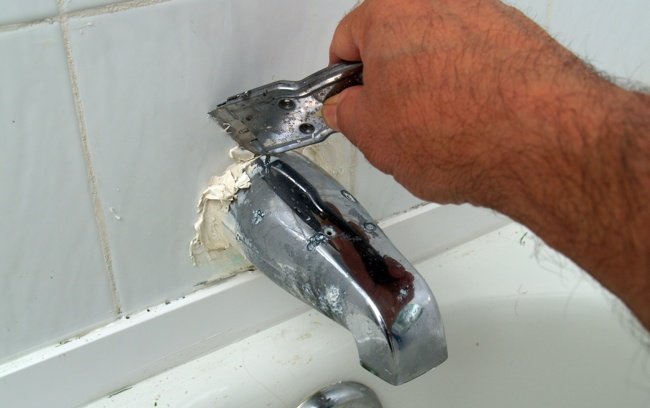

1. Scrape off old caulk. If there was a gap between the old spout and the wall, the new spout will eliminate it.



How to Replace a Tub Spout - Step 2

Photo: JProvey

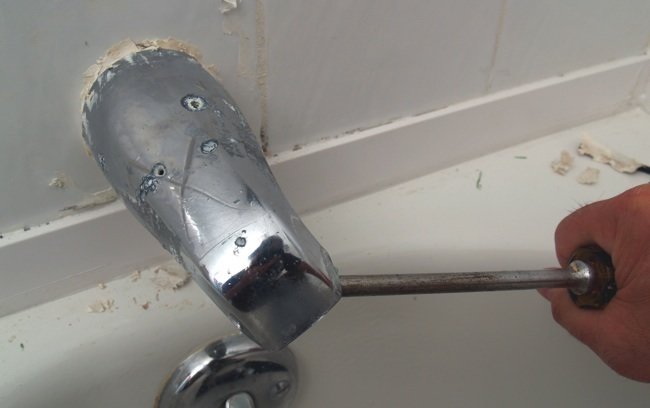

2. Insert a large screwdriver or the handle of a wood hammer into spout, using the tool as a lever to rotate the spout in a counterclockwise direction. Unthread and remove the spout.



How to Replace a Tub Spout - Step 3

Photo: JProvey

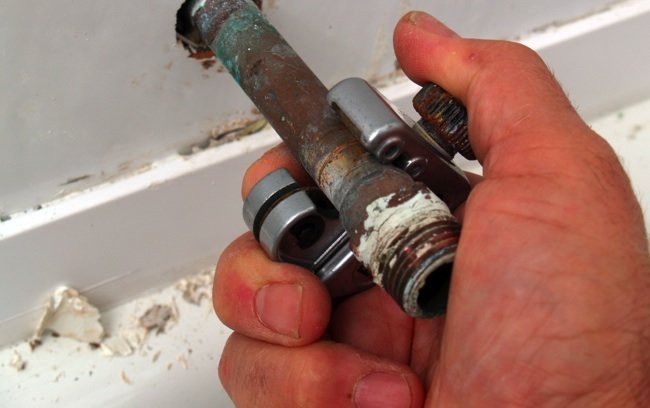

3. Use a tubing cutter to cut the pipe stub to a three- or four-inch length.



How to Replace a Tub Spout - Step 4

Photo: JProvey

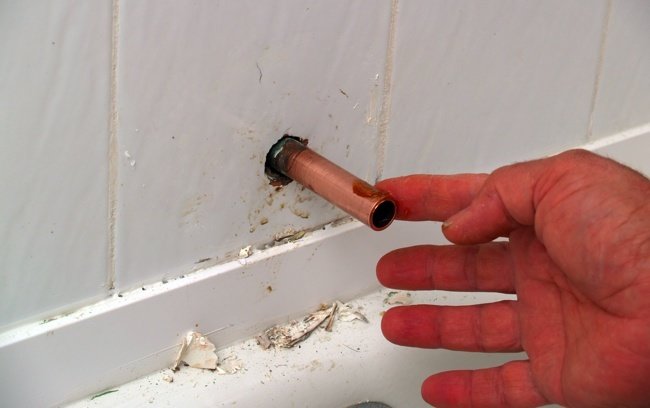

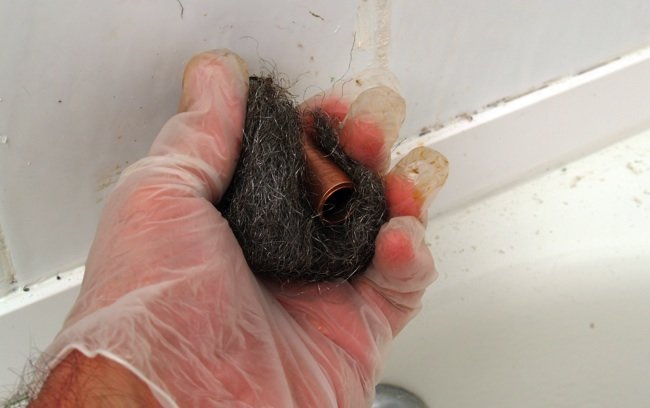

4. Clean the stub with steel wool until it’s bright and smooth. Make sure no burrs or sharp edges remain.



How to Replace a Tub Spout - Step 5

Photo: JProvey

5. Apply a dab of silicone grease.



How to Replace a Tub Spout - Step 6

Photo: JProvey

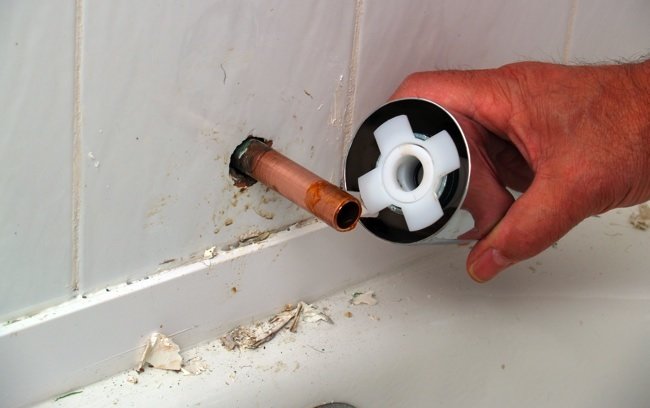

6. Slide the new spout onto the stub.



How to Replace a Tub Spout - Step 7

Photo: JProvey

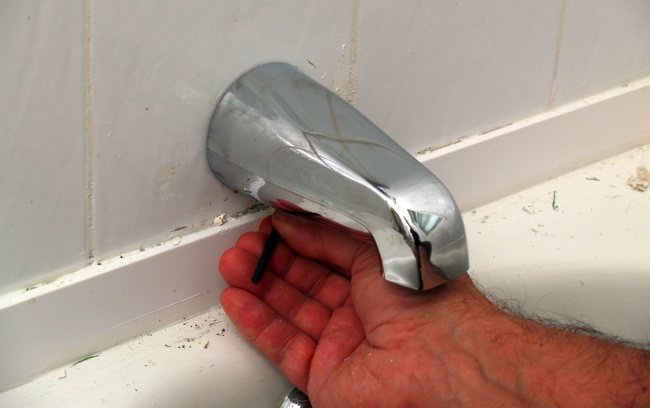

7. Lock the spout in place by tightening the set screw with the supplied Allen wrench.
