Shipping Container Homes

Steel shipping container homes are strong, safe, and eco-friendly.

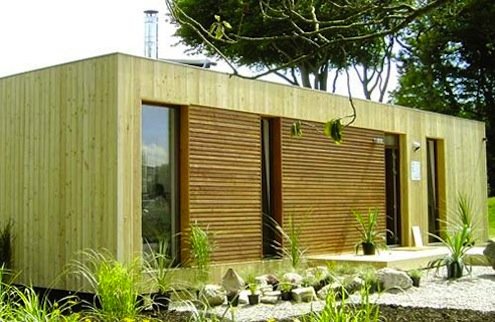

Shipping Container Home
Photo: homedesignarchive.com

Share

We may earn revenue from the products available on this page and participate in affiliate programs. Learn More ›

Looking for an inexpensive backyard office or a tiny house in the woods? Check out the growing field of container architecture, which offers container homes constructed from reused shipping containers. Builders today offer prefab container homes; there are also plans and kits that allow you to build a custom container house. A large house built from shipping containers ranges in price from $150,000 to $175,000, about half the price per square foot of a conventional home. Dimensions for a standard size Intermodal Steel Building Unit (ISBU) are 40-by-8-by-8 feet; 20-foot containers also are available. Steel shipping containers typically cost from $1,400 to $4,000, and customizing a container home with electricity, plumbing, windows and other options can cost from $50 to $150 per hour. Anyone considering a container house also should take into account the cost of the land and a foundation upon which the container will be placed.

Shipping container homes, also called storage container homes, offer a fast, green, and sustainable approach to building. These intermodal steel building units (ISBUs) are manufactured in a factory-controlled environment so they are standardized and reliable. They can be used to build an average-sized home with almost no wood.

In North Charleston, SC, Tampa Armature Works (TAW) and local contractors quickly and easily constructed a container house, blending it perfectly into the surrounding neighborhood. They used four 40′ x 8′ x 8′ ISBUs laid side-by-side to create a three-bedroom home, measuring 1,280 square feet, without a hint of its original corrugated-steel exterior of the container.

Pre-Fitting Off-Site

When opting to build with ISBUs, the building blocks are readymade and ready to transport. TAW starts by shipping the containers to their Tampa factory for modifications. Once there, the house blueprints are reviewed and each unit is custom-fit for construction. In a home where four containers are to sit side by side, all but the outermost side panels are removed so that, once connected, the ISBUs create an open 40′ x 32′ interior space. The vertical steel support beams are left in place for load-bearing purposes, with five along each remaining side of a container. Openings are cut into the outer walls for doors and windows.

TAW uses Supertherm insulative coating, which is sprayed on both sides of the remaining container walls to prepare the house to save on energy that is used to heat and cool the house. Supertherm is a high-performance, four-part ceramic coating that carries an R value of R-19 and adheres to the steel surface of the shipping containers. “It really worked,” says Shannon Locklair, project superintendent for the North Charleston house. “We had an open house one day when it was 85 or 90 degrees out and the air was at least 10 to 20 degrees cooler inside. This was before we had even installed the windows.”

Attaching the Home to Its Foundation

A shipping container house sits on a traditional concrete block foundation. A 40′ x 32′ stem wall foundation is set and reinforced with steel rebar. Concrete then fills the cells and 1/2″-thick steel plates are embedded into the concrete at the corners to secure the incoming ISBUs. Each plate sports a J-hook, which connects the shipping container to the exposed rebar and ties it all the way down to the footing. Additional footings are poured and individual concrete blocks are placed inside the foundation to support the sides of adjoining ISBUs.

When the ISBUs arrive on site, they are crane-lifted one by one onto the foundation, hooked into place, and welded down to marry them completely to the foundation. These heavy-gauge steel shipping containers are so strong—each is designed to carry 57,000 pounds—that they need only be fastened at the corners to hold fast, much as they would be on a ship. Attaching them to embedded steel reinforcements and welding them in place ensures they will be immovable.

Once secured, adjacent units are welded to each other above and below. “Once they’re all welded together at top and bottom,” explains structural engineer Steve Armstrong, “you have, in effect, a big steel box.” The resulting design is a single, immensely strong structure that goes up in almost no time at all.

Locklair points to the Charleston installation as an example of the speed with which the base for shipping container homes can be completed. “The installation of all four containers took place in a two- to three-hour time period,” he says. “After that we basically had a structure without a roof.”

On-Site Construction

A conventional, hip roof can be placed and secured atop the “big steel box” structure in a matter of another two or three hours. A trussed roof is fastened with metal straps that are welded to the steel sides and wrapped around the rafters at four-foot intervals. Simpson hurricane clips tie each individual rafter to the steel roof for added security and protection against uplift.

Inside, workers install a 1/2″ plywood floor over the existing 3/4″ plywood subfloor. The crew runs metal hat channels for wiring along the walls and vertical support beams that dot the interior of the new build. Metal studs and drywall are used for interior partition walls. Once insulated, the existing container walls are faced in drywall for finishing, transforming the ugly corrugated-steel interior and prepping them for design accents such as paint or wallpaper.

The exterior is clad with James Hardie fiber cement siding. Windows and doors are installed into pre-cut openings with a minimal use of wood framing. Doors are hung and the roof is shingled, leaving the house ready for design and furniture choices. “Within 60 days we had our house ready for all the interior stuff.” says Locklair. “Within 30 more days it was completely finished.”

Building Strong, Smart, and Fast with ISBUs

Savings and reliability are the hallmarks of ISBU building. Homebuilding crews save time, money, and wood by using a product that is manufactured, pre-fitted for installation, eco-friendly, and structurally sound. The speed and ease with which the shipping containers are ordered, prefabricated, and installed streamlines the entire construction process. When asked to compare it to traditional stick building, Locklair is quick to answer: “Honestly, I think it was a lot easier.”

It is most likely the outstanding fire and safety ratings that will impress insurance companies and code officials. In hurricane-prone areas like Florida or coastal South Carolina, shipping container homes offer tremendous sustainability and strength. “I would like to see someone try to tear that house down,” laughs Locklair. “It would take a whole lot more than a bulldozer.”
