The Best Drill Bits for Metal, Tested

Drilling through metal requires a drill bit that can take the heat. The best bit for your project will tackle the type of metal you’re working with and make a clean, precise hole.

Best Overall

The Best Drill Bits for Metal Option: Bosch 21-Piece Black Oxide Metal Drill Bit Set

Bosch 21-Piece Black Oxide Metal Drill Bit Set

See It

Best Bang for the Buck

The Best Drill Bits for Metal Option: DeWalt DWA1184 Black and Gold Drill Bit Set

DeWalt DWA1184 Black and Gold Drill Bit Set

See It

Upgrade Pick

The Best Drill Bits for Metal Option: Irwin 3018002 29-Piece Cobalt Alloy Steel Drill Bits

Irwin 3018002 29-Piece Cobalt Alloy Steel Drill Bits

See It

We may earn revenue from the products available on this page and participate in affiliate programs. Learn More ›

Home improvement centers often dedicate an entire aisle to drill bits, which come in a plethora of types and sizes for drilling holes in a variety of materials. Many drill bits can pierce through more than one type of material, but not all drill bits can drill through metal without heating up and snapping in half. Labels on drill bits indicate the type of material for which they’re suited, so it’s easy enough to find ones that are designed to drill metal. Depending on the type of metal the user is drilling through, some bits suit the task better than others.

Through hands-on testing, we found a number of drill bit sets that rise above the competition and help make holes in myriad metals. Some of the results were truly surprising. For those of you working on a project that requires drilling through metal, read on to learn about the factors to consider before shopping for the best drill bits for metal.

  1. BEST OVERALL: Bosch 21-Piece Black Oxide Metal Drill Bit Set
  2. BEST BANG FOR THE BUCK: DeWalt DWA1184 Black and Gold Drill Bit Set
  3. UPGRADE PICK: Irwin 3018002 29-Piece Cobalt Alloy Steel Drill Bits
  4. BEST STEP-DRILLING BITS: Comoware 5-Piece Titanium Coated Step Drill Bit Set
  5. BEST HEAVY-DUTY: Drill Hulk ¼-Inch Cobalt Steel Jobber Set
  6. ALSO CONSIDER: Irwin 63137 Cobalt Alloy Steel Drill Bits for Metal

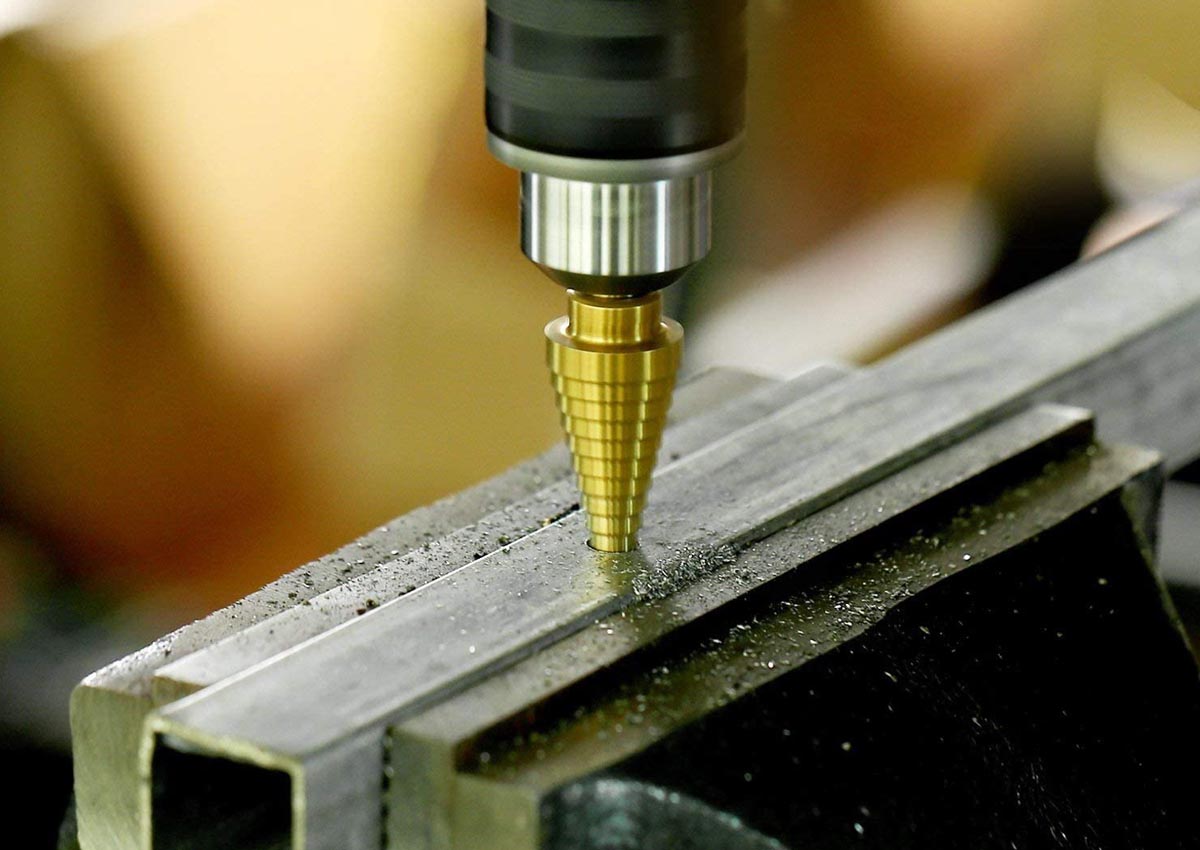

The best drill bits for metal option in use drilling into metal
Photo: amazon.com

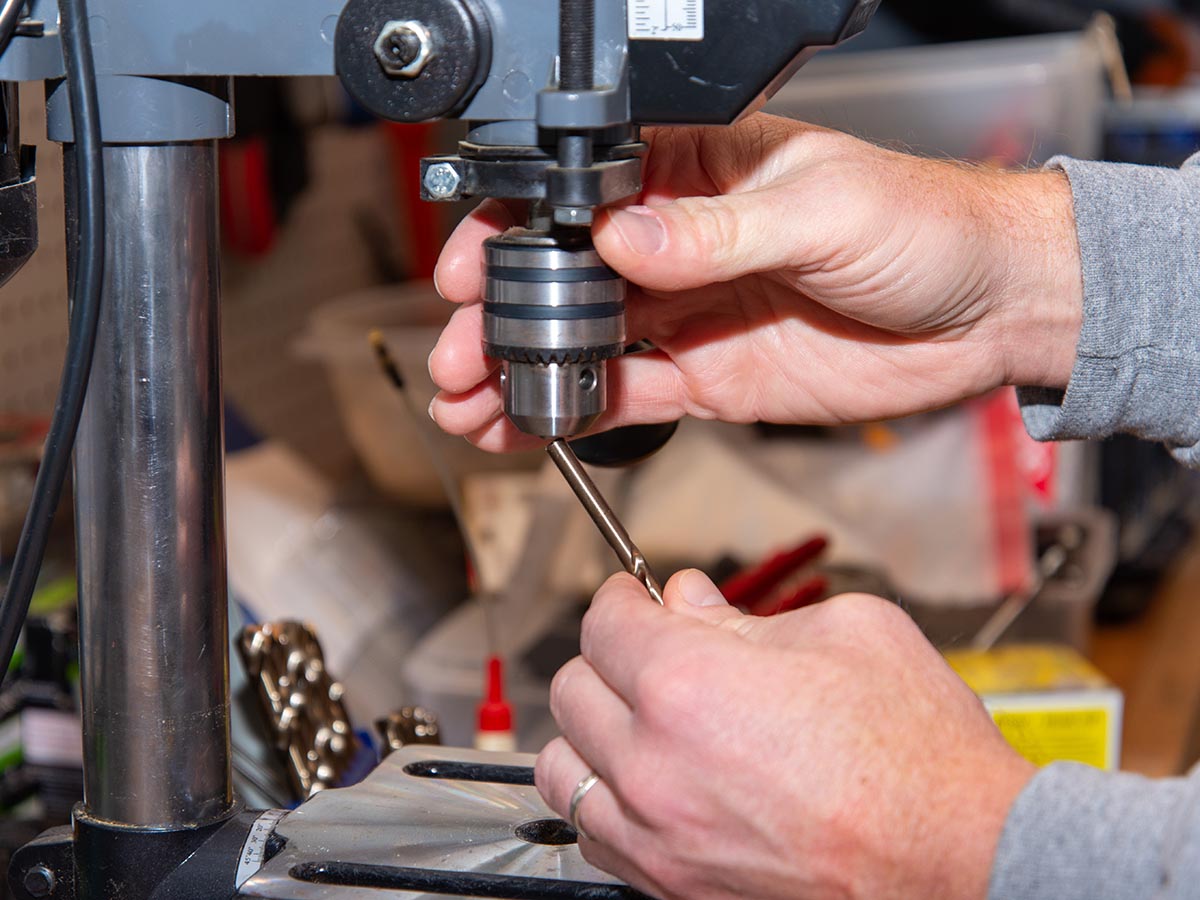

How We Tested the Best Drill Bits for Metal

There’s only one good way to test drill bits for metal: We needed to put some holes in some metal! We grabbed some scraps of metal off our welding cart, chucked some bits into our drill, and started drilling.

First, we drilled into some relatively light-duty 11-gauge steel angle iron, testing a few bits from each pack. We wanted to see how well they’d retain their edge, how hot they’d get, and how long it would take them to bore a hole in the metal.

Then we moved to some heavier-duty 7-gauge flat stock, again testing how each bit made it through the test. We did our best to maintain similar speeds and pressure throughout each portion of every test. Afterward, we did our best to hand sharpen each of the larger bits with a file. The bits that passed these tests were given awards based on their strengths.

Our Top Picks

We tested these Top Picks products to ensure that they had what it takes for drilling metal. To qualify as one of the best drill bits for metal, the bit needed to perform well in the metal that it’s designed to drill. Bits also need to be durable and able to withstand the friction and heat produced when drilling through metal. The following recommendations are all at the top of their class for metal drilling, and one (or more) may be an asset to your tool collection.

Best Overall

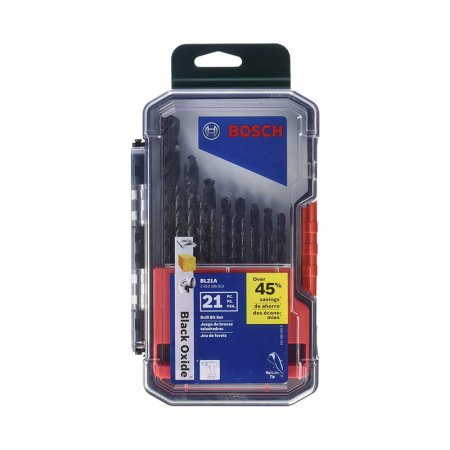

Bosch 21-Piece Black Oxide Metal Drill Bit Set

See It

Those looking for an all-around capable set of drill bits may want to check out the Bosch black oxide metal drill bit set. Manufactured from high-speed steel and coated in black oxide, Bosch drill bits can withstand friction and heat so you can drill continuously without the bits heating up.

The Bosch bits’ tapered tips can quickly penetrate the metal, balance the bit, and produce a clean, even hole. The set includes 21 bits ranging in size from 1/16 inch to ½ inch and is packaged in a plastic storage case.

While we’re not huge fans of general-purpose bits typically, especially when it comes to drilling metal, these Bosch bits were excellent. They didn’t walk when starting a hole, and they removed long shavings of metal, proving they remained sharp while drilling. We were so shocked that these bits were this good that we kept drilling with them to see if it was a fluke. They drilled holes faster than the other bits in the test, which really surprised us.

We did dislike that the smaller bits have rounded shanks, as they can be a pain, particularly when the bit is about to drill all the way through the material. However, the large bits have no-spin shanks and do a great job of staying in place. The tips stayed sharp making hole after hole, and they remained cool to the touch during use (while using cutting oil).

Product Specs

  • Material: High-speed steel (HSS)
  • Coating: Black oxide
  • Shank type: Smaller bits are round; larger no-spin bits

Pros

  • Surprisingly sharp for a general-purpose bit that can also drill wood and plastic
  • Drilled holes in heavy-duty steel faster than any of the other bits in the test
  • Remained sharp and cool during the test, even after drilling several holes in the test material

Cons

  • Smaller bits have rounded shanks that spin as the bit is about to exit the material

Get the Bosch drill bits for metal at Amazon, Lowe’s, or Tractor Supply Co.

Best Bang for the Buck

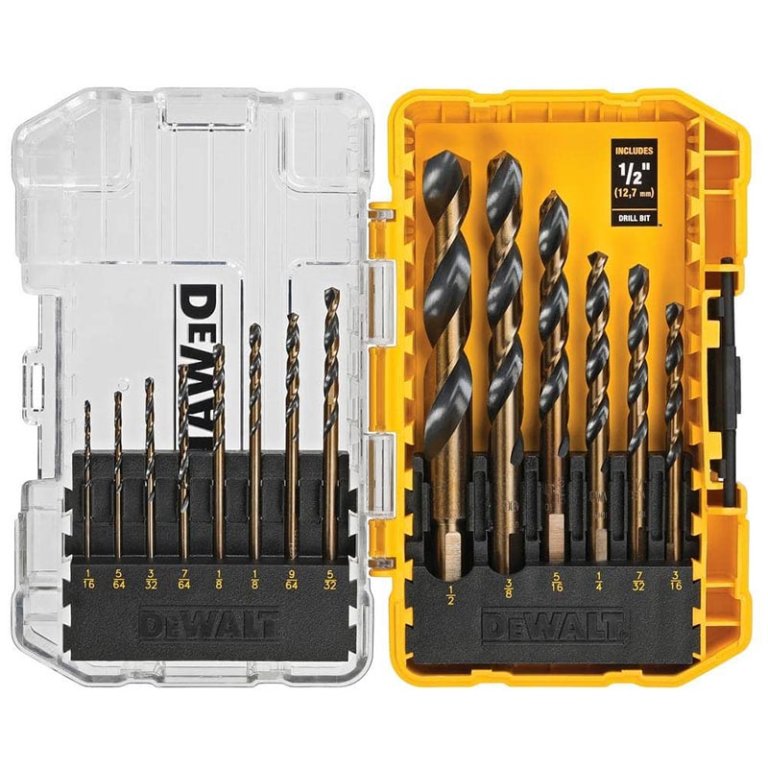

DeWalt DWA1184 Black and Gold Drill Bit Set

See It

Folks who need to drill a few holes in some metal surfaces but don’t want to break the bank on a set of expensive drill bits may prefer the DeWalt DWA1184 black and gold drill bit set. This set of all-purpose bits can drill wood, plastic, or metal and features 135-degree split-point tips to help prevent walking.

This kit comes with 14 bits from 1/16 inch to ½ inch, all of which are made of high-speed steel. The smaller bits have rounded shanks while the larger bits have no-spin shanks. Each bit features the brand’s “black and gold” coating designed to keep them from rusting. Everything stores away in a see-through case, helping to keep the bits organized and easy to find.

To be 100 percent upfront, we have never liked DeWalt drill bits. We have found that they’re usually relatively low quality and pretty much “throwaways.” But this particular kit was incredible when it came to drilling metal. They didn’t walk at all, and they cut long, continuous, spiraled shavings—the sign of a sharp bit. The rounded shanks on the smaller bits did spin a little, but the no-spin shanks on the larger bits were great. Each bit stayed cool with a spritz of lubricant and remained sharp throughout the test. And, surprisingly, this budget kit drills through wood faster than some of the much more expensive drill bits in the test.

Product Specs

  • Material: HSS
  • Coating: “Black and gold” coating
  • Shank type: Smaller bits are round, larger no-spin bits

Pros

  • The split-point tips didn’t walk at all regardless of the size used, helping you drill accurately
  • Price point is very affordable for a multiuse set
  • Bits drilled more quickly than some of the more expensive kits
  • Surprisingly sharp out of the box, cutting long, spiraled shavings

Cons

  • The small bits did spin a bit due to having rounded shanks

Get the DeWalt drill bits for metal at The Home Depot.

Upgrade Pick

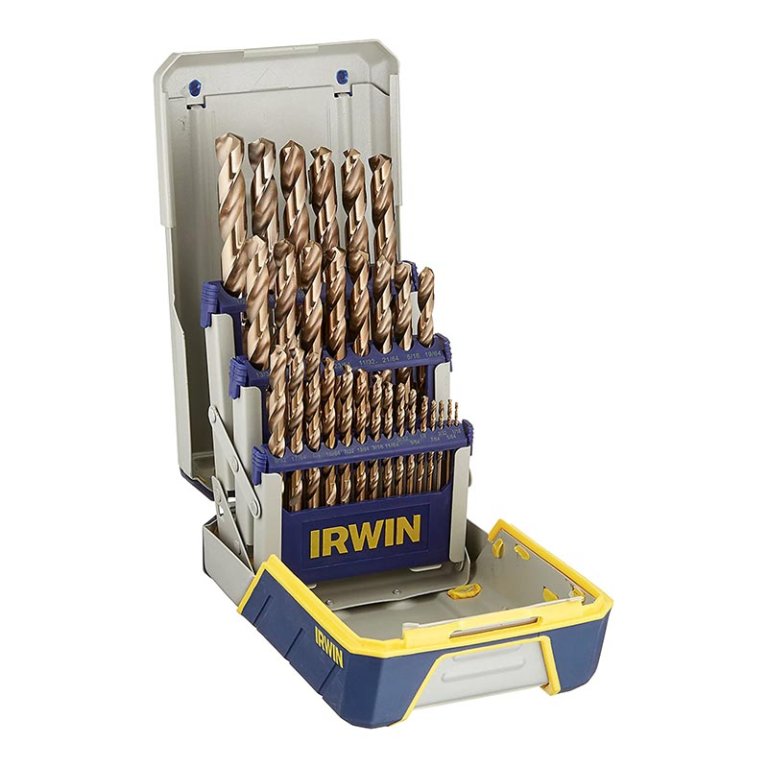

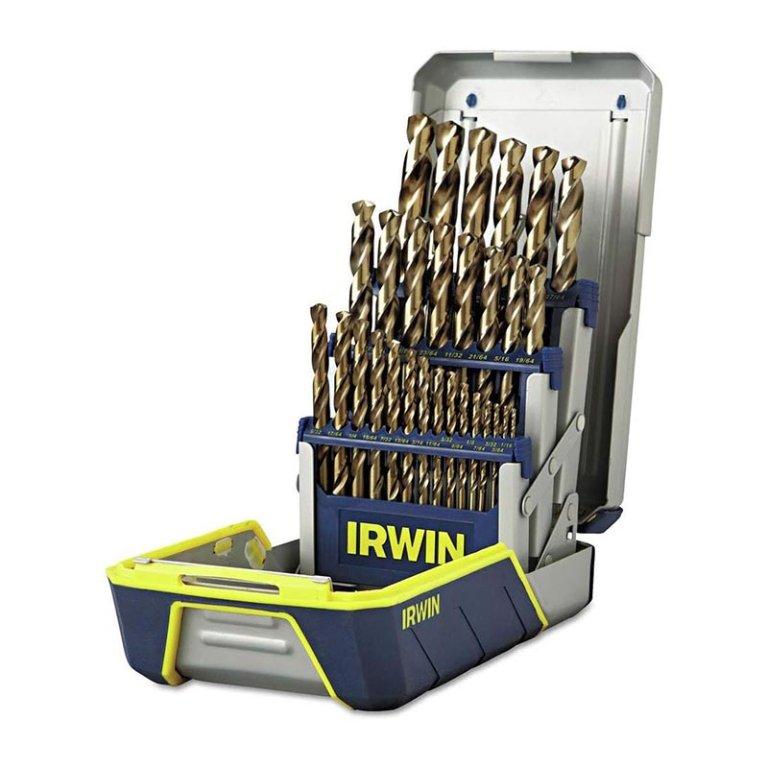

Irwin 3018002 29-Piece Cobalt Alloy Steel Drill Bits

See It

Avid metalworkers looking for a quality drill bit set for their metal projects may want to upgrade to the Irwin 29-Piece cobalt-alloy steel drill bits set. This set includes 29 drill bits from a 1/16-inch bit to a ½-inch bit, with bits larger than ⅜-inch wide having reduced-size shanks so they can fit smaller chucks.

These drill bits are made from durable cobalt-alloy high-speed steel, helping retain a sharp edge while drilling. They all fit inside the sturdy hinged case with a spring-loaded latch to keep the kit closed when not in use. The case also has a tap guide inside to help you identify which bit to use for a particular bolt or fastener.

One of the best features of the Irwin 29-piece set is the range of sizes available. Each bit increases by 1/64-inch increments between 1/16 and ½ inch, meaning there is a bit for almost any size hole.

The bits didn’t cut quite as fast as some of the other drill bits in the test, but they did retain their edge nicely. They also didn’t walk at all when starting the bit, and the tap size chart inside the kit could definitely come in handy. What we didn’t like was the fact that every bit, despite its size, features a rounded shank. But the sturdy case with a spring-loaded latch ensures this kit stays shut, and the rubber molding on the case can prevent it from slipping off of a work surface.

Product Specs

  • Material: Cobalt-alloy HSS
  • Coating: Cobalt
  • Shank type: Rounded (but sizes over ⅜ inch are reduced to fit smaller chucks)

Pros

  • A wide selection of size options between 1/16- and ½-inch widths in 1/64-inch increments
  • Made from cobalt-alloy high-speed steel for durability and edge retention
  • Case features sturdy construction, a spring-loaded latch, and tap size guide inside

Cons

  • All of the bits, regardless of the size, feature a rounded shank

Get the Irwin 3018002 drill bits for metal at Amazon or Acme Tools.

Best Step-Drilling Bits

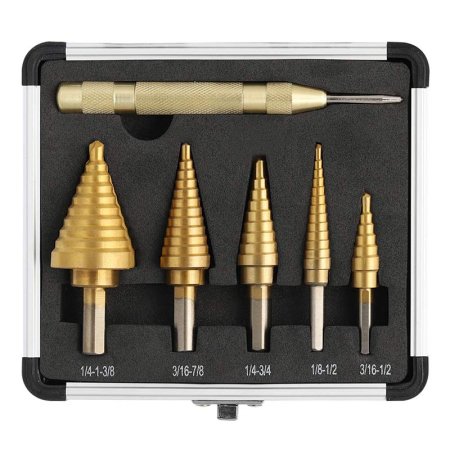

Comoware 5-Piece Titanium Coated Step Drill Bit Set

See It

When it comes to enlarging hotels in metal materials, a step bit like the ones in this five-piece kit from Comoware is the tool for the job. This kit features five different sets of bits, each with a series of steps, totaling 50 sizes from one kit. Sizes range from ⅛-inch to 1 ⅜-inch wide.

These bits are made from high-speed steel for strength, and they feature a titanium coating for reducing friction and increasing durability. The kit comes with a carrying case with a foam insert with recesses for each bit and a spring-loaded center punch for marking the holes’ locations.

These are great bits, but we found they were better for enlarging holes than actually drilling them (at least when it comes to metal). If we started with another bit to drill the initial hole, we could quickly work up to the desired size with the Comoware (the tips of the bits themselves just didn’t seem sharp enough for metal). We liked that there are so many sizes in one kit, and the spring-loaded center punch worked well for locating the bit.

Product Specs

  • Material: HSS
  • Coating: Titanium
  • Shank type: No spin

Pros

  • 1 kit features 50 different sizes between 1/8- to 1⅜-inch-wide bits
  • Made from high-speed steel with a titanium coating, allowing them to resist rust and wear
  • Quickly enlarges existing holes to the desired size with 1 bit (with the hole started)

Cons

  • Bits aren’t quite sharp enough to start their own holes in metal, but they do work well to enlarge them to the desired size

Get the Comoware drill bits for metal at Amazon, Sears, or Kmart

Best Heavy-Duty

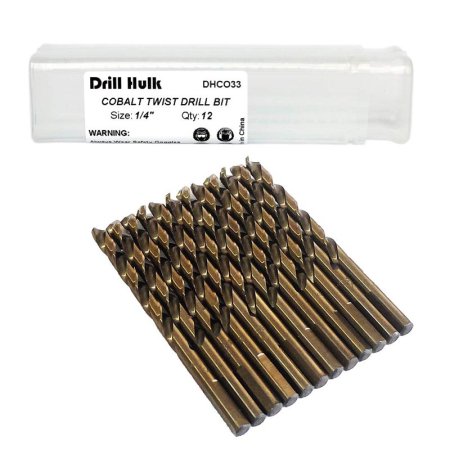

Drill Hulk ¼-Inch Cobalt Steel Jobber Set

See It

DIYers and pros who go through a lot of ¼-inch drill bits for their heavy-duty metalworking projects may benefit from the Drill Hulk’s ¼-inch cobalt steel set. This 12-pack of bits features jobber-style lengths, which means their lengths are relatively long compared to their diameters. They’re made from durable cobalt high-speed steel, feature 135-degree split points for drilling through metal without walking, and have a no-spin shank to prevent them from spinning in the chuck.

These bits are made for hard use. Their construction is durable, retaining an edge while drilling through thick ¼-inch steel. The no-spin shank prevented the chuck from slipping, boring right through the metal without stopping. They also stayed cool while drilling.

While we don’t have an immediate use for a dozen ¼-inch drill bits, we do like that a full-time shop can order enough bits from Drill Hulk to replace their most commonly used sizes without purchasing a whole kit that contains unneeded sizes. However, we did notice that these bits can walk slightly, despite the 135-degree split point.

Product Specs

  • Material: Cobalt HHS
  • Coating: Cobalt
  • Shank type: No spin

Pros

  • Heavy-duty bit with a 135-degree tip to prevent walking when drilling
  • Features no-spin shanks to prevent the bit from sticking in the material and spinning in the chuck
  • Comes in a set of a dozen ¼-inch cobalt HHS bits allowing you to replace your most used bits without buying a whole kit

Cons

  • They did walk slightly upon start-up, despite the 135-degree split-point tip

Get the Drill Hulk drill bits for metal at Amazon

Also Consider

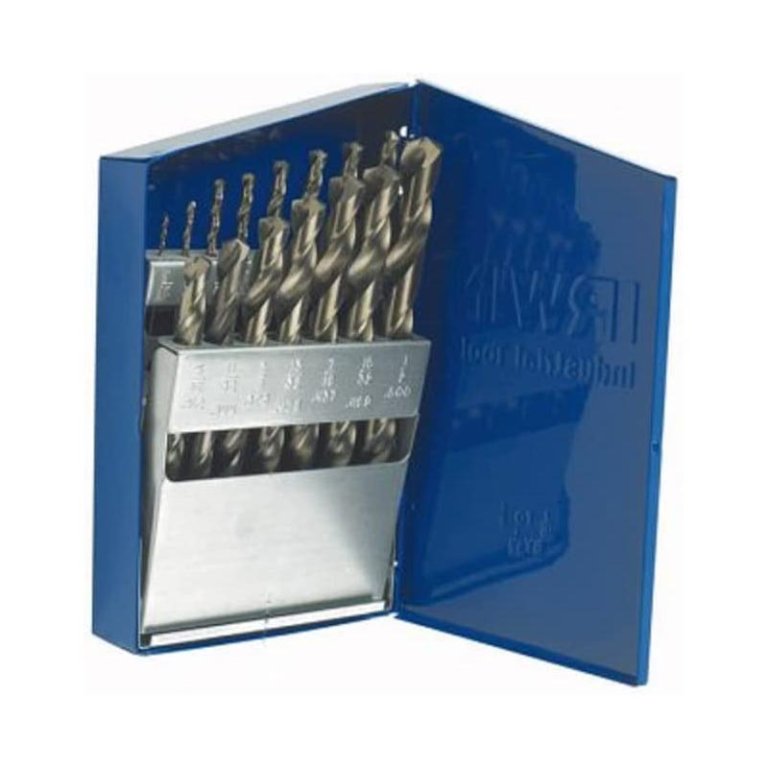

Irwin 63137 Cobalt Alloy Steel Drill Bits for Metal

See It

When looking for a set of high-quality drill bits for metal, you may want to consider the Irwin 63137 set of bits. Made from cobalt high-speed steel, they’re designed specifically for hardened steel. They have 135-degree split-point tips, helping them to resist walking when starting a hole. They also resist wear and heat, making them a solid choice for drilling through metal materials. Bit sizes range from 1/16 to ½ inch wide, and the bits larger than ⅜ inch wide have reduced shanks.

These bits did a fine job of drilling through our test materials. They didn’t walk when we started the holes, and they bored through the metal at a reasonable pace. The case itself has a cheap plastic tab to keep it shut, but otherwise, it does a good job of keeping these bits safe and organized. They stayed cool while drilling and retained their sharp edges even after several holes. Our biggest complaint is the rounded shank, as the small bits did spin a bit in the chuck.

Product Specs

  • Material: Cobalt alloy steel
  • Coating: Cobalt
  • Shank type: Round

Pros

  • Cobalt high-speed steel is designed specifically for drilling through hardened steel
  • Included case keeps bits safe and organized when they’re not in use, despite the cheap plastic tab
  • They stay cool and retain their edge, even after drilling multiple holes

Cons

  • They feature a round shank, and they did spin in the chuck a few times

Get the Irwin drill bits for metal at Amazon.

Jump to Our Top Picks

What to Consider When Choosing Drill Bits for Metal

Most drill bits fit both standard corded and cordless drills. While these small pieces of metal all look pretty similar, each type of drill bit is designed to make holes in specific materials—including wood, plastic, and metal—but won’t work as well on other materials.

Bits that drill through metal are further classified by the types of metal they puncture. For example, some bits are capable of drilling through ferrous metals, such as cast iron, and others through nonferrous metals, such as copper and tin.

Drill Bit Material

Most drill bits are made from HHS, cobalt, or carbide. A bit’s material can influence how effective it is at drilling through different kinds of metals.

  • HHS: This is an all-purpose drill bit that can be used to drill through both ferrous and nonferrous metals as well as carbon steel.
  • Carbide: Metal-drilling bits made from carbide are suitable for drilling nonferrous metals but not ferrous metals.
  • Cobalt: This type of metal-drilling bit works well for drilling ferrous metals but may not be as good at drilling nonferrous metals.

Coating

Drill bit coatings affect how a drill bit operates. Most metal drill bits are usually coated with titanium or black oxide. This coating is designed to reduce friction, which keeps the drill bit from heating up and eventually breaking. Because the coating reduces friction, it can also help increase drill speed.

Shank Design

The shank is the nondrilling end of the bit that fits into the drill’s mandrel or “chuck.” For hex shank bits, the shank size of the bit chosen (typically ¼ inch, ⅜ inch, or ½ inch wide) should match the chuck size of the drill.

Some shank designs are more conducive to drilling through metal than others. Most shanks for this type of drill bit are either no spin or hex.

  • Round shank: These bits have completely rounded shanks. They don’t help prevent slipping.
  • No-spin shank: This type of drill bit has a fluted shank that is designed to keep the bit from slipping when drilling.
  • Hex shank: Similar to the shape of some screwdriver bits, a hex shake has six sides that help the bit remain steady while drilling into hard metals.

Tips for Buying and Using Drill Bits for Metal

Researching shank design, bit material, and bit coatings can be confusing, but fortunately, drill-bit manufacturers make shopping relatively easy for the customer. Drill bits are labeled not only by the size of the hole they’ll drill but also by the type of materials they’ll drill.

Look for the words “metal drilling bit” on the package, followed by a list of metals the bit is designed to puncture. Here are a few additional tips that will help drill smoother holes and keep bits in tip-top shape.

  • Use a center punch to create a depression in the metal before drilling. This will reduce the likelihood of the bit slipping off the material to be drilled.
  • Use a lubricant while drilling. A drop of three-in-one oil or cutting fluid will lubricate the drill bit, making drilling easier and reducing wear and tear on the bit.
  • The friction generated by the bit drilling through the metal can cause the bit to heat up and break. This is especially true with larger bits. By drilling slower and taking breaks every few minutes to let the bit cool down, the bit can last longer.

FAQs

Whether you’re just getting into metalwork or you want to expand that drill bit set, adding metal drilling bits to an arsenal of tools is a good investment. If drilling through metal is a new endeavor, there may be some questions that need answering.

Q. Is a cobalt or titanium drill bit better?

It depends on what kind of metal you’re drilling through. Titanium bits are suitable for drilling through soft metals such as aluminum, while cobalt bits are better suited for drilling through hard metals like cast iron.

Q. How can you drill through thick metal?

The best way to drill through thick metals is to use a drill press rather than a handheld drill—a press best achieves a clean, smooth hole. Be sure to drill slowly and use cutting fluid to lubricate the bit, too. Let the bit cool down every few minutes to keep it from overheating and breaking.

Q. How can I sharpen my drill bits for metal?

Many DIYers don’t bother sharpening their bits when the cutting edges become dull and they have trouble drilling a hole, but it’s tool maintenance worth doing. You’ll get a longer life out of your drill bits if you sharpen their cutting edges with a bench grinder.

Q. Do I need to clean drill bits after each use?

It’s not a bad idea to clean drill bits after using them. After drilling, wipe away any residue on the bit with a soft cloth and then rub a bit of cutting fluid on it before storing it.

Q. How do I remove a broken drill bit from metal?

Add a drop or two of lubricating oil to the bit and then grab the broken end of its shank with a pair of pliers. Twist counterclockwise to remove the bit.

Meet the Tester

Tom Scalisi has been in the trades for over two decades. He loves to share his knowledge of construction, home improvement, tools, techniques, and products with the readers of Bob Vila, This Old House, Family Handyman, and even his pest control blog.
