It was only a matter of time before I tried out my bottle cutter on a mason jar. Here’s how I pulled off this mason-jar-turned-wind-chimes upcycle, just in time for warm weather outdoor decor.
This project is a great stash buster for those beads and charms you’ve been stockpiling. There will be some cutting and drilling of glass, but don’t fear, you can do this!
- Mason jar with lid
- 2 eye screws
- Piece of scrap wood about 1/2 inch thick and smaller than lid
- Fishing line or other clear string
- Beads, chain, charms and connectors of your choice
- Bottle cutter
- Butane micro torch or candle and lighter
- Dremel or other rotary tool
- Measuring tape
- Shallow container with cold water for drilling your jar (this will make sense later)
- Bucket of cold water deep enough to submerge jar
- Protective mask and goggles
- E6000 Glue adhesive
- Diamond bits for glass; I used a bit from this set
- Permanent marker
- Medium-grit sand paper
- Glass beads or wine bottle rings
Place the mason jar on the cutter.

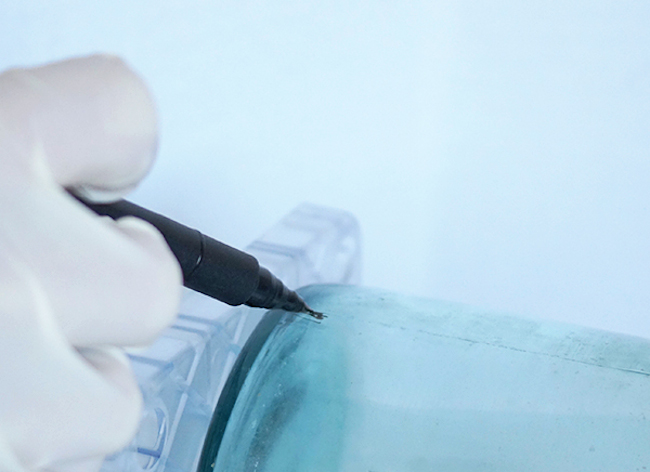

Mark the jar so you know when you have made a complete rotation.

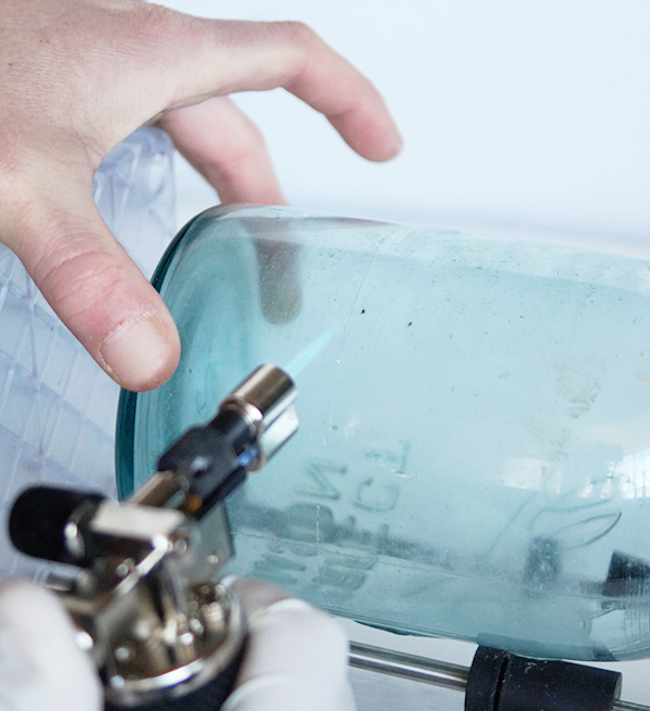

Once the score line is made, it is time to apply heat and cold to it. I like to do this with a butane micro torch while rotating the bottle on the cutter jig. I have moved the blade out of the way and am just using the cutter jig to hold the bottle and give me a way to rotate it easily with one hand while holding the torch with the other.
If you are using a torch, one minute is plenty of time for applying heat. Sometimes this is enough to break the score line. If not, submerge jar into cold water, covering score line. That is all it took for me on this mason jar. If yours doesn’t separate, repeat the heat and cold until it does.

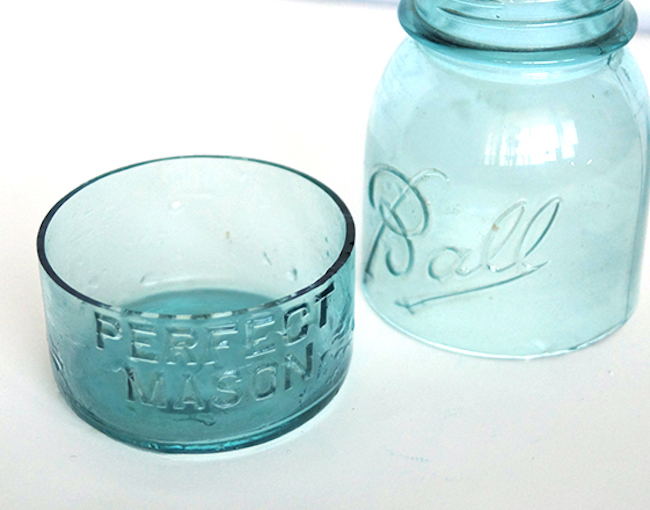

This is what my break looked like. Not bad! Now it is time to sand and smooth the edges.

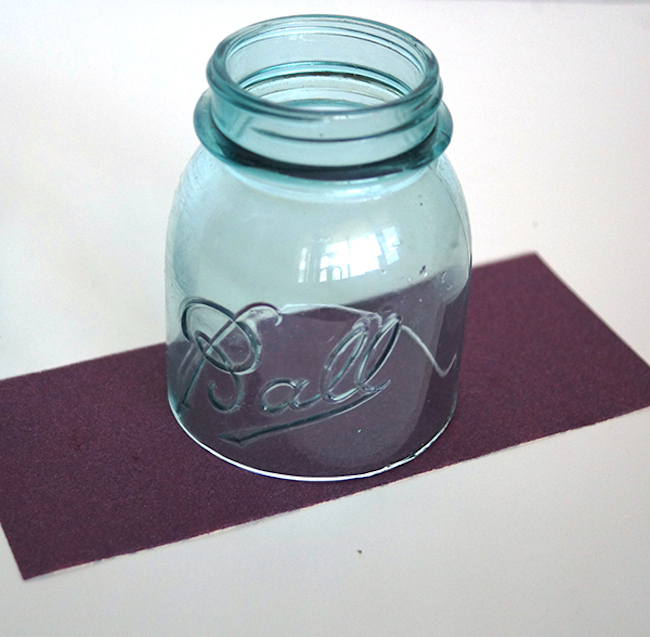

Sand lightly with medium grit paper. Get the inner and outer edges of the break. This is pretty quick.
You will notice after a minute or two of sanding that the edge is smooth to the touch and won’t cut you.
I measured the diameter of my jar and it was 12 inches. I marked every 3 inches for drilling a hole. This gave me 4 holes evenly spaced around the jar for stringing beads and charms.
Before drilling, put on eye gear and mask!

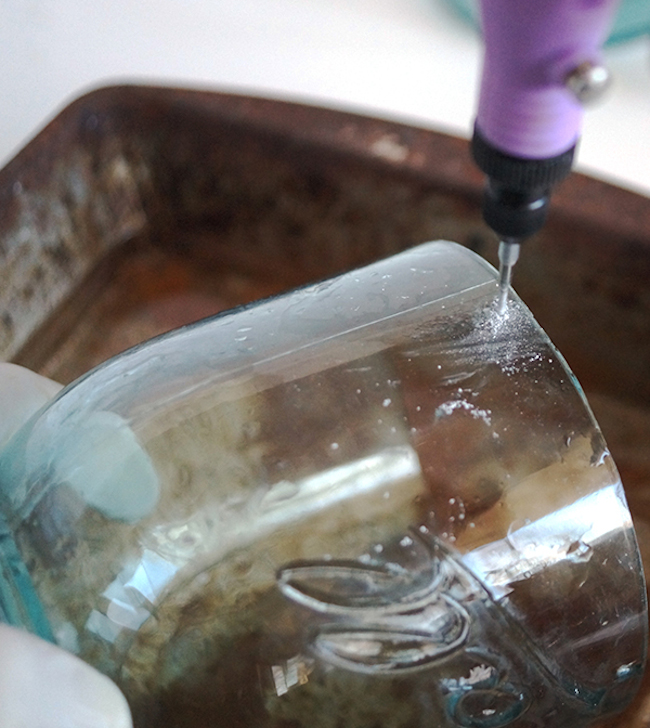

Place jar in shallow container of cold water. I use a square baking tin.

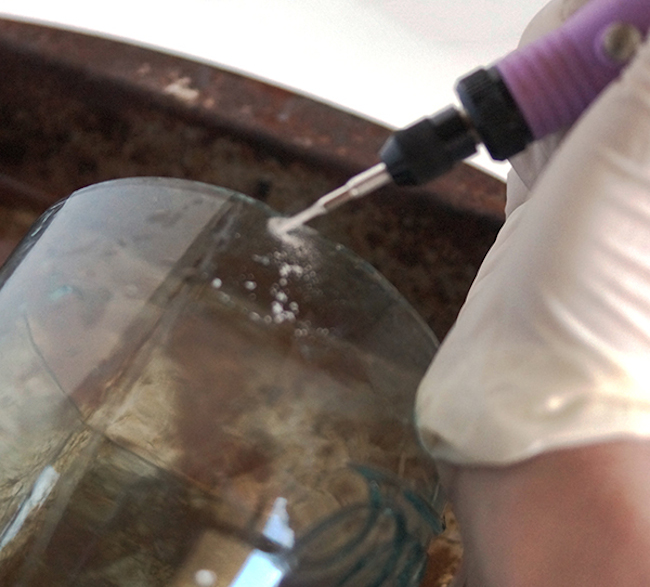

To begin drilling, come in at an angle to start an indentation.
Once the indentation is started, move drill to 90°. Every 30 seconds or so, stop drilling and rotate jar so that hole gets rinsed out and glass where your were drilling gets cooled. This prevents the glass from breaking due to high heat. Continue until you have drilled all the way through.
Do this at each mark around the jar.
Use fishing line or beading string to string various beads, charms, found objects, and chain to your liking in each hole.
I wanted to use the old lid that was on this jar in the design, so I needed to have a way to hang the chimes by it. I used a hammer and small nail to make a hold in the top center.

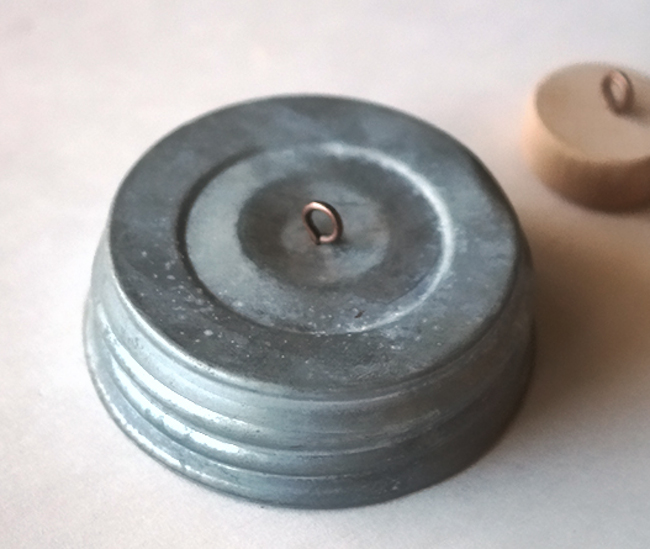

Next I screwed in the eye screw as pictured.

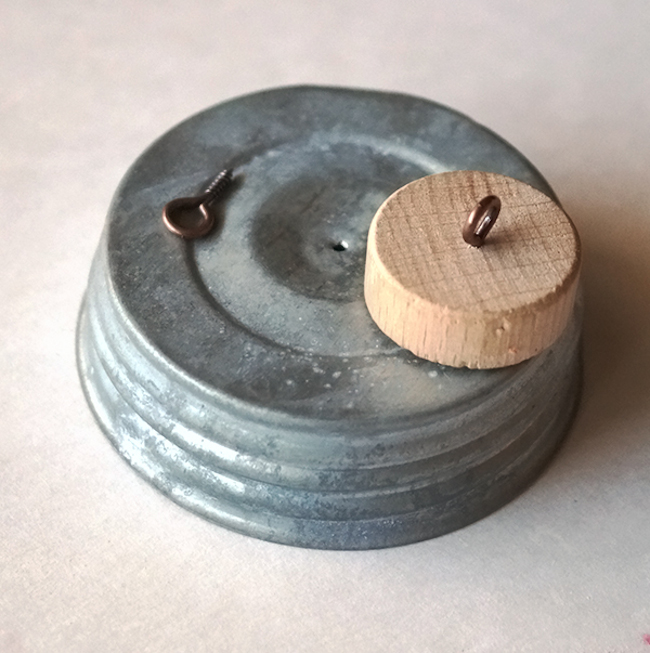

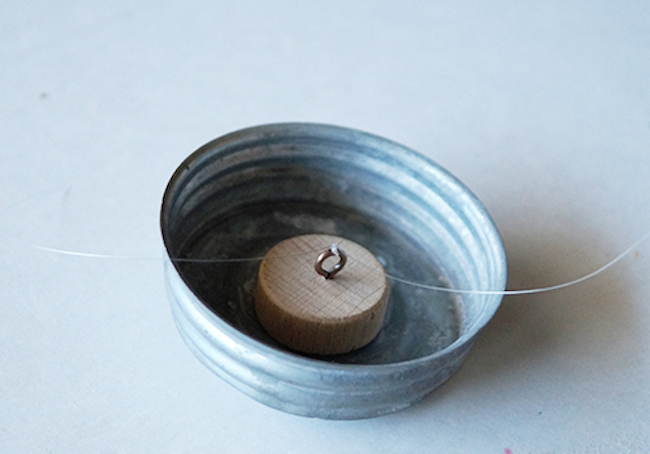

I drilled into the wooden disk and screwed the remaining eye pin to the other side as shown. I later added E6000 to the wooden disk on the side that contacts the jar lid for added strength. It gets pretty gusty around here in the spring!
I cut a length of fishing line to the eye screw and tied the other end to a wine bottle ring, tied another ring to that one, and another ring to that one for a total of 3 hanging down from the middle of the jar.

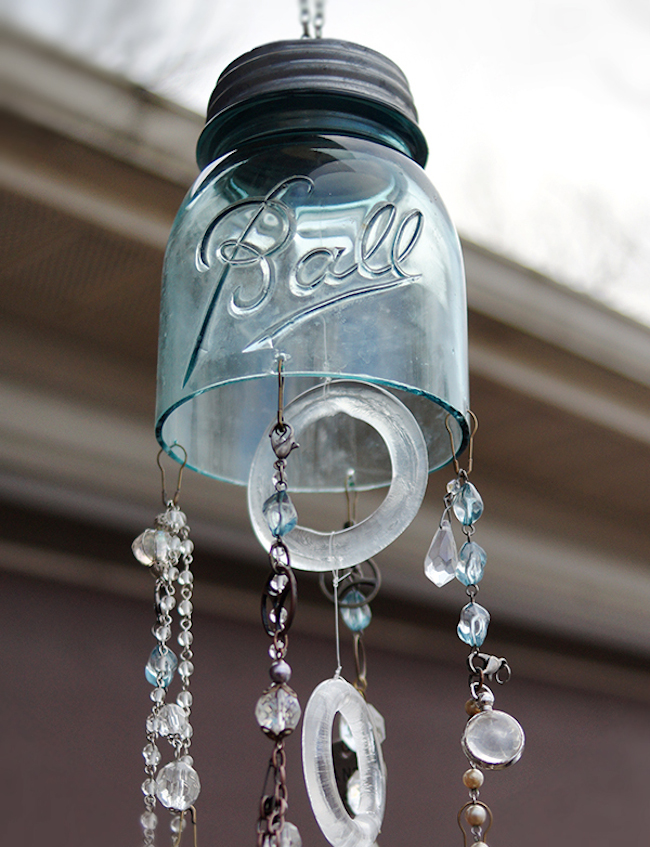

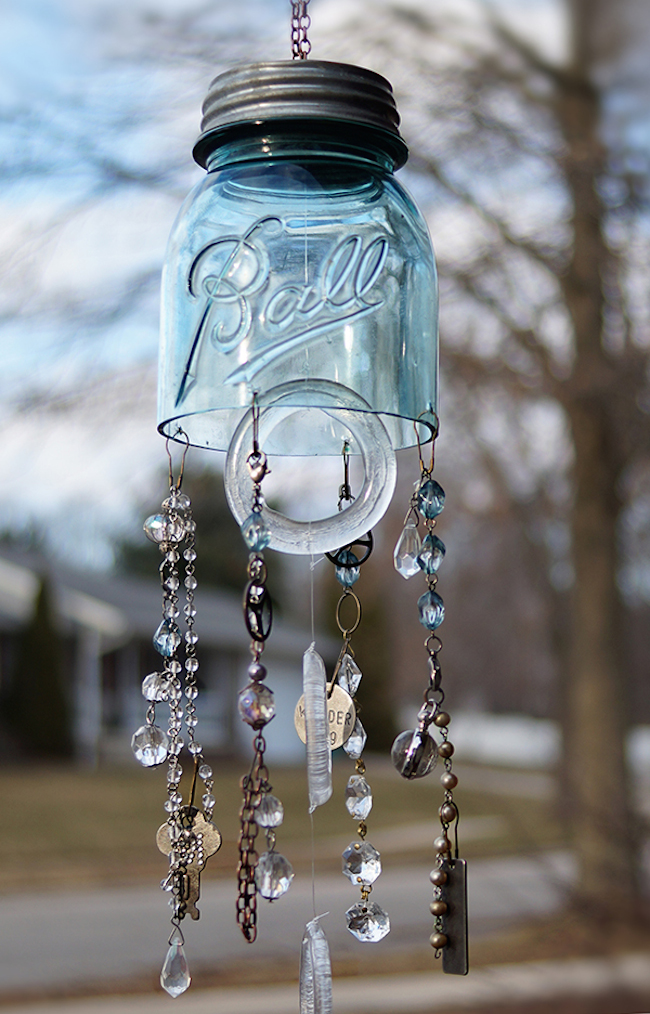

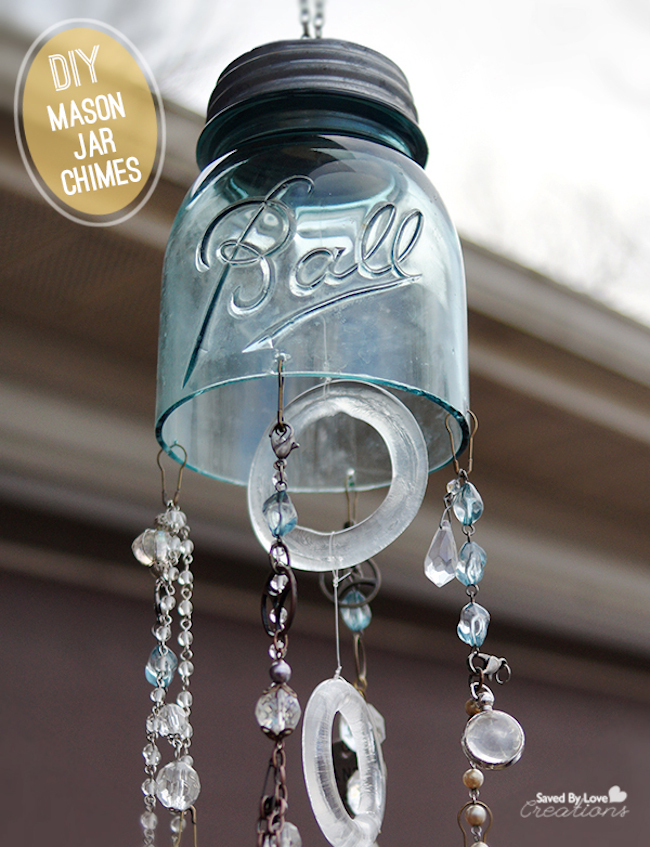

To finish, put the lid on the jar and add chain to the eye screw on top for hanging. Hang and enjoy!
Thanks, Saved by Love Creations!
