How To: Sweat Copper Pipe

Ready to take on more complex plumbing jobs? Learn this technique of creating leak-proof joints.

SHARES

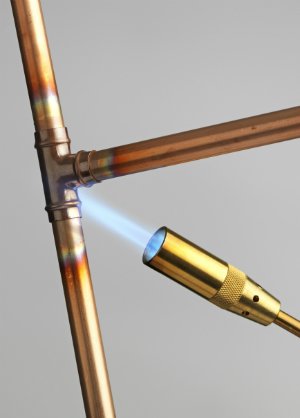

How to Sweat Copper Pipes

Photo: istockphoto.com

For DIYers eager to take on plumbing tasks, one of the most important skills to master is how to sweat copper pipe—a process commonly referred to as soldering—in order to achieve leak-proof joints. The job consists of two main tasks: first prep work to clean the pipes, and then the heating process for flowing solder to seal pieces (two pipes or, more commonly, a pipe and a joint) together. Be sure to dress for the job in a heavy, long-sleeved shirt and wear insulated gloves to protect against potential drips of molten metal. Also keep in mind that if your pipes aren’t already cut to length, you’ll need to do that prior to sweating. While sweating copper pipe can seem intimidating at first, with patience and attention to detail you should soon be a pro.

MATERIALS NEEDED
- Copper pipes
- 120-grit emery cloth
- Wire fitting brush, sized to the pipe you’re working with (optional)
- Lead-free tinning flux (sometimes called soldering paste or plumbing flux)
- Acid brush
- Insulated gloves
- Clean rags
- Safety goggles
- Lead-free solder
- Flame protector cloth (optional, but recommended)
- Propane soldering torch

We recommend that you learn on practice pipes, a worthwhile investment until you build enough confidence to tackle plumbing in your home.

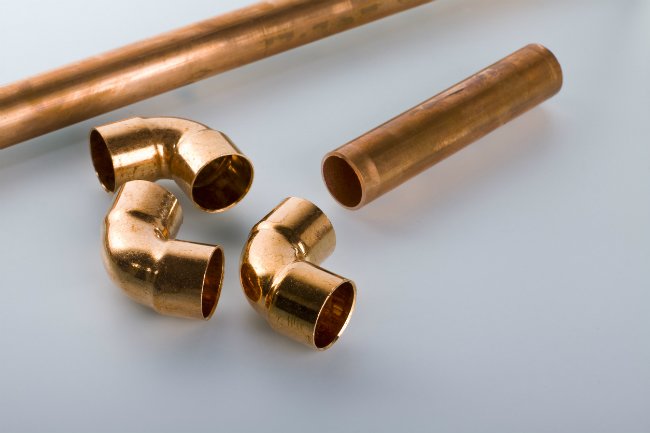

How to Sweat Copper Pipes and Fittings

Photo: istockphoto.com

STEP 1
Examine inside all cut copper pipes to ensure that the burr (a ridge of copper shards caused by the saw where the cut was made) has been removed, to allow unimpeded water flow once the joints are sweated. If burr remains, follow the steps to remove it here.

STEP 2
Clean both the outside and inside of the first inch or so of pipes (the cut lengths and/or the joint) with emery cloth, which you can find in home centers and hardware stores sold alongside flux and solder. If a wire fitting brush is handy, it will make short work of cleaning inside the copper pipe. Otherwise, wrap the emery cloth around your index finger, stick it in the mouth of the pipe, and twist to clean.

Cleaned copper will shine like a brand new penny. After cleaning, it’s critical to avoid touching the copper pipe with your bare hands, lest natural oils and dirt on your skin interfere with the sweating process.

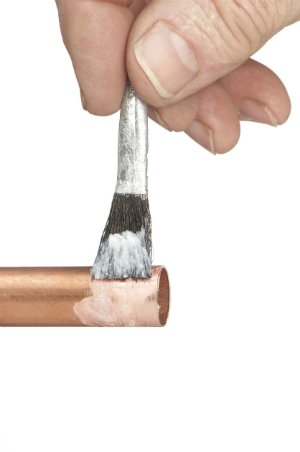

How to Sweat Copper Pipes using Plumbing Flux

Photo: istockphoto.com

STEP 3
Don insulated work gloves for protection against the acid in the flux. Apply a thin, even layer of tinning or plumbing flux to the newly cleaned sections of the exterior and interior of the copper pipes with an acid or flux brush. Wipe off excess flux with a clean rag.

STEP 4
Hang flame protector cloth over any wood, metal, or other surface capable of scorching within 8 inches of the work area where you’ll be using the propane torch and put on a pair of goggles for eye protection. Fire up the torch and hold it about 2 inches from the fitting. Pass it slowly over the flux-covered sections for 10 to 20 seconds until the flux begins to melt, becoming shiny. The copper will soon darken and the flux will sizzle and/or bubble, even smoke. This means the acid has begun to work. The surface will become dull and etched, creating a bondable surface.

STEP 5
Wearing your insulated gloves, push the connecting pieces together until fully sealed (or as far as they’ll go). Twist the copper pipes slightly to distribute flux evenly inside the joint. Wipe off excess flux with a clean rag.

STEP 6
Set your torch to a lower-power “rosebud” flame. A full-power torch flame resembles a cone with a narrow point—the point heats the area it touches more than it heats the rest of the copper pipe. A rosebud flame, however, wraps around the pipe, bringing the whole pipe up to sweating temperature at once. This allows for cleaner, more even sweating. Using the rosebud flame, begin heating the connecting pipes at the joint seam.

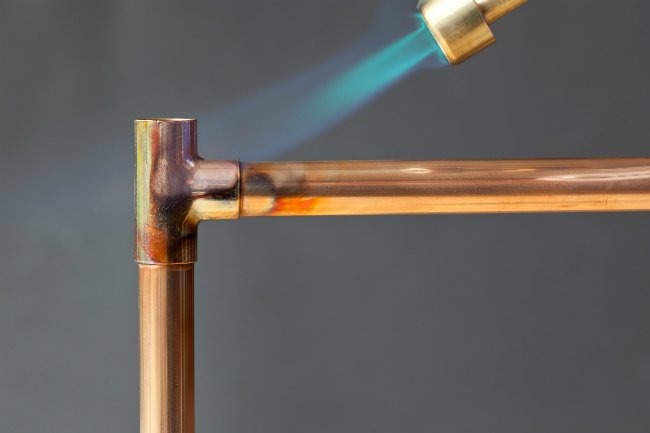

How to Sweat Copper Pipes

Photo: istockphoto.com

STEP 7
Hold the lead-free solder opposite to the rosebud flame at a 90-degree angle to the joint seam. (Since leaded solder is still sold in stores, be sure to check that you supply is actually lead-free—a critical choice for pipes that route water supply.)

Now, touch the heated pipe with the solder. If the pipe is hot enough, the solder will melt—this is called “flowing the solder.” If the pipe isn’t hot enough, the solder won’t melt or flow, so keep it up with the torch until the solder melts upon touching the joint. Once the melting point is achieved, solder will trickle down, flowing around the seam, sealing the two pipes together, successfully sweating the joint.

STEP 8
Turn off the propane torch and set it down. (Note: Never leave the torch on when it’s not in use, as it could easily fall over and become an extreme fire hazard.) Wipe off any excess solder with a clean rag.

Allow the pipe to cool for at least a full minute before applying any pressure. You’ve successfully sweated your first copper pipe—well done!
